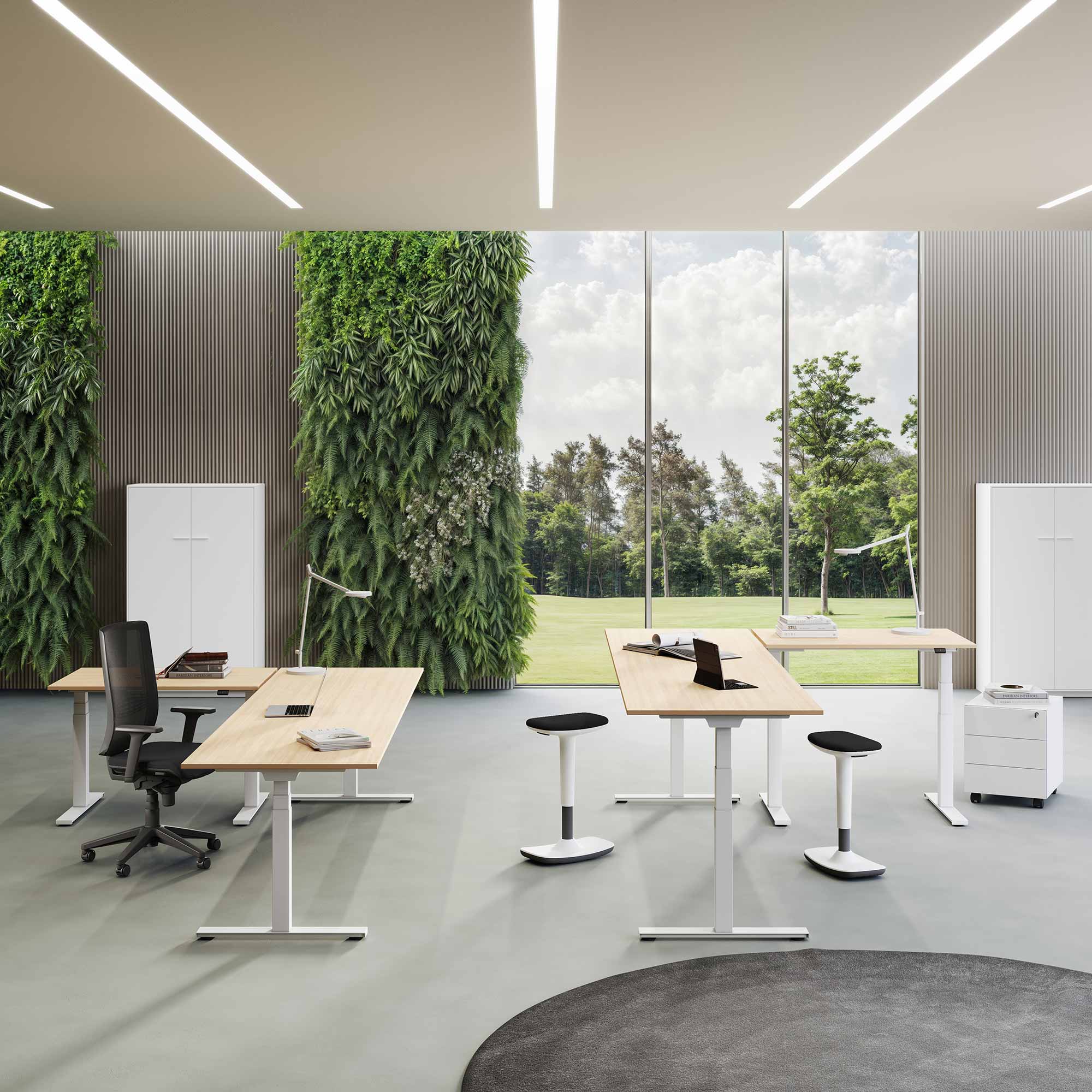

The structure kit consists of two vertical columns made up of three square telescopic tubes.
Epoxy-polyester powder coating.
Two electric motors are incorporated in the column capitals with two elevation mechanisms and two brackets for connection to the floor.
The base is fitted with floor levelling feet.
Adjustable from 600-1250mm under the top.
Maximum load capacity 100 kg. Movement speed 35mm/s.
The materials used are:
– base foot: upper and lower part in 30/10mm thick steel
plate
– columns: steel tubes 80 x 50 mm,
– stabilising feet: Ø 60mm in polypropylene
– structure assembly screws: M6x16 and M8x25
– telescopic beams: from L. 120 to L. 180 cm.
The electrical kit consists of a push-button panel, a control box, connection cables and a power supply cable.
The control box coordinates the function of the electric motors inserted in the capitals of the telescopic columns and also manages the “anti-collision system” that blocks movement in the presence of obstacles under or above the desk.
Available button panels:
– Up&Down
– Memory
Voltage/frequency 230V I 50Hz
The tops that can be combined with the frames are part of the Centrufficio production in the standard or on-demand finishes of the Doria, Bramante and Fusion lines.
